POLYWEL UP
POLYWEL UP!
 |
產品說明:

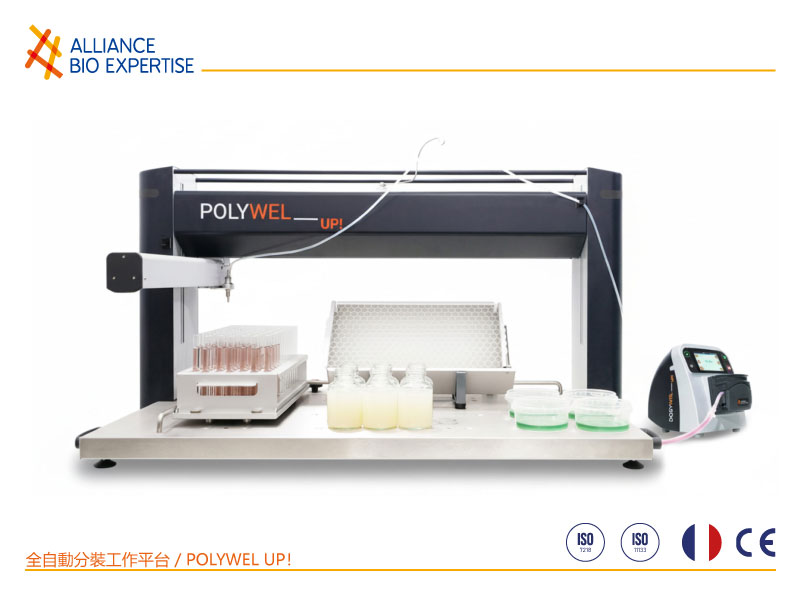

POLYWEL UP! / 全自動分裝工作平台

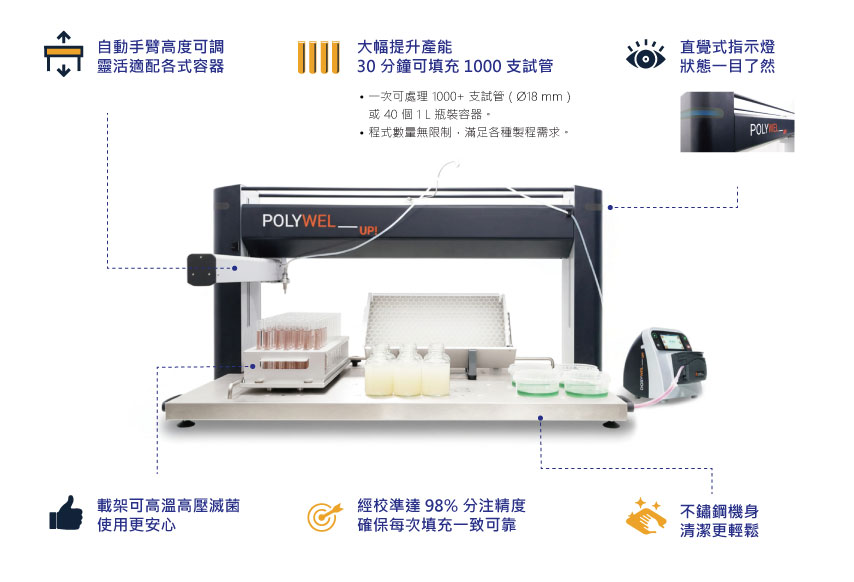

■ 精確的
■ 大幅提升產能
■ 靈活適配各式容器
■ 98% 高精度分注
■ 專業級可滅菌載架
■ 不鏽鋼機身，易於清潔
■ 指示燈提示 |
| 產品名稱 : POLYWEL UP! |
| ■ |
產品優點 |
| |
 |
| |
POLYWEL UP! 自動完成試管、培養瓶與各式容器的填充作業，是微生物實驗室不可或缺的分裝解決方案。快速、可靠且均一的培養基分配，同時大幅提升作業效率與產能。
POLYWEL UP! 具備高效能分裝能力：單次可處理超過 1000 支 Ø18 mm 試管或 40 個 1 L（Ø100 mm）瓶。僅需 30 分鐘即可完成 1000 支 9 mL 試管分裝，精準度高達 98%。
|
| ■ |
產品規格 |
|
|
| |
POLYWEL UP |
| |
Dispensing volume |
From 1 to 9999.9ml |
| |
Adujstable speed |
5 - 100% / 10-450 rpm |
| |
Dispensing time for 1000 tubes (9ml) |
30 minutes |
| |
Tubes per rack (ø18mm) |
Large rack : 250 Small rack : 120 |
| |
Number of programs |
Unlimited |
| |
Tubing diameters |
1.6 mm / 3.2 mm / 6.4 mm / 8mm |
| |
Flow rate |
1.2 L/min maximum (in POLYWEL UP mode) |
| |
Calibration |
At the beginning of a cycle and/or after a selected number of doses |
| |
Maximum size of containers |
Height : 223 mm |
| |
External dimensions of racks (L x W x H) |
Large rack : 440mm x 220mm x 110 mm / Small rack : 240mm x 220mm x110mm |
| |
Internal dimensions of racks (L x W) |
Large rack : 390mm x 195mm / Small rack : 190mm x 190mm |
| |
Dimensions POLYWEL UP! (L x W x H) |
1150mm x 605mm x 620mm |
| |
Power supply POLYWEL UP! |
120 - 240V (± 10 %) 50 - 60 Hz / 120W |
| |
Power supply DOSYWEL UP! |
120 - 240V (± 10 %) 50 - 60 Hz / 120W |
| |
Warranty |
1 year |
| |
Country of origin |
France - European Union |
|
|
